The sectionChoice element specifies how a choice is displayed and what options are provided.
Element Structure
The sectionChoice element structure is as follows:
<xs:complexType name="sectionChoice">
<xs:sequence>
<xs:element name="id" type="xs:string" />
<xs:element name="choiceValue" type="xs:string" />
<xs:choice>
<xs:element name="clickToContinue" type="tns:clickToContinue" />
<xs:element name="choiceOption" type="tns:choiceOption" />
<xs:element name="choiceSwitch" type="tns:choiceSwitch" />
<xs:element name="selectFromList" type="tns:selectFromList" />
<xs:element name="textInput" type="tns:textInput" />
<xs:element name="uploadImageList" type="tns:uploadImageList" />
</xs:choice>
</xs:sequence>
</xs:complexType>
|
The sectionChoice element contains the following sub-elements:
Name
|
Data Type
|
Comment
|
id
|
string
|
In a multi-choice environment, the server receives the choice id as the input (selected choice).
|
choiceImage
|
string
|
Specifies an image illustrating the label.
|

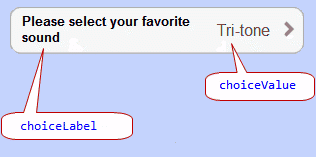

choiceLabel
|
string
|
Specifies the displayed label name.
|
choiceValue
|
string
|
Stores the value (data) entered by the user (for example when going ‘Back’ or when the value is pre-defined).
|
The choiceValue sub-elements are as follows:
|
clickToContinue
|
clickToContinue
|
Implements the click-to-continue style for multiple options and Yes/No options.
|
choiceOption
|
choiceOption
|
Implements radio button style for multiple options and Yes/No options.
|
choiceSwitch
|
choiceSwitch
|
Implements a Yes/No switch (instead of Yes/No drop-down).
|
selectFromList
|
selectFromList
|
Implements a drop-down list.
|
textInput
|
textInput
|
Implements all text box formats.
|
uploadImageList
|
uploadImageList
|
|
collectionItem
|
collectionItem
|
Either a list of simple variables (text, numbers, booleans, etc.) represented as disabled buttons, or a list of custom objects.
|
|
