The textInput element specifies how text is inserted and displayed.
Element Structure
The textInput element structure is as follows:
<xs:complexType name="textInput">
<xs:complexContent>
<xs:extension base="tns:button">
<xs:sequence>
<xs:element name="isMandatory" type="xs:boolean" />
<xs:element name="maxCharacters" type="xs:nonNegativeInteger" />
<xs:element name="numberOfLines" type="xs:nonNegativeInteger" />
<xs:element name="placeHolderText" type="xs:string" />
<xs:element name="textColor" type="xs:string" />
<xs:element name="textInputFormat" type="tns:inputFormatEnum" />
<xs:element name="textMask" type="xs:string" />
<xs:element name="validationRegularExpresion" type="xs:string" />
<xs:element name="minRange" type="xs:string" />
<xs:element name="maxRange" type="xs:string" />
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
|
The textInput element contains the following sub-elements:
Name
|
Data Type
|
Comment
|
|
extends button
|
The extension element extends the textInput complexType element.
|
isMandatory
|
boolean
|
Specifies input validation before sending input to the server. The element also adds an asterisk indication before the buttonLabel indicating this functionality.
|
maxCharacters
|
nonNegativeInteger
|
Specifies the number of characters allowed to be entered. There is a prompt alert when user exceeds the maximum number of characters. 0 = no limit.
|

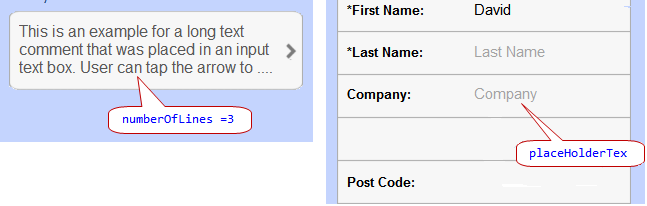

numberOfLines
|
nonNegativeInteger
|
Specifies the number of text lines can be entered into the field. 0 = no limit (dynamic as required), 1 = single line, short text, 2-n = number of displayed lines.
|
placeHolderText
|
string
|
Specifies a short hint describing the expected input field value. The hint is displayed until user starts to type, or if a value is removed.
|
textInputFormat
|
inputFormatEnum
|
Defines the Keyboard type.
|
textMask
|
string
|
Provided a Mask to display the text entered by the user.
|
validationRegularExpresion
|
string
|
Specifies the text to display before input validation and input transmission to the server.
|
minRange
|
string
|
Specifies the text to display before minimum range value validation and input transmission to the server.
|
maxRange
|
string
|
Specifies the text to display before Maximum range value validation and input transmission to the server.
|
rangeAlert
|
alert
|
Specifies an alert resource implementation when a range validation fails.
|
validationAlert
|
alert
|
Specifies an validation resource implementation when a validation fails.
|
|
