Configuring Server Settings
Contents
The Server tabs of the Settings dialog enable you to specify settings related to the web server and (if relevant) the proxy server.
Configuring server settings involves specifying the URL of the server, providing the credentials associated with server access, and defining proxy server settings (if relevant). After defining proxy server settings, the Interaction Designer needs to be restarted.
To define server settings:
1.From the Options menu, select Settings.

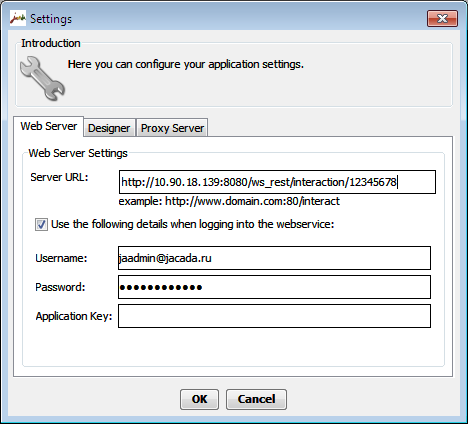

The Settings dialog appears, with the Web Server tab displayed by default.
2.In the Server URL field, enter the URL of the Interaction Server.
Note: In a cluster configuration, the Server URL should point to the URL of the load balancer. |
3.If credentials are required for server access, select the checkbox. Then, enter the relevant username and password in the appropriate textboxes.
4.In the Application Key field, enter the application key that was provided to you by your system administrator.
5.If you use a proxy server, specify the necessary settings:

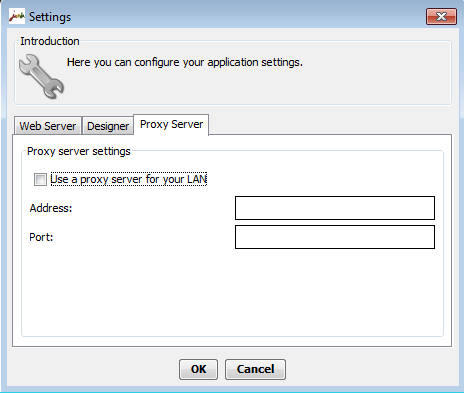

From the Proxy Server tab, select the checkbox. Then, enter the address and port of the proxy server in the appropriate textboxes.
5.Click OK.
Server settings are configured and saved.
Note: When proxy server settings have been defined or modified, the Interaction Designer needs to be restarted. |
