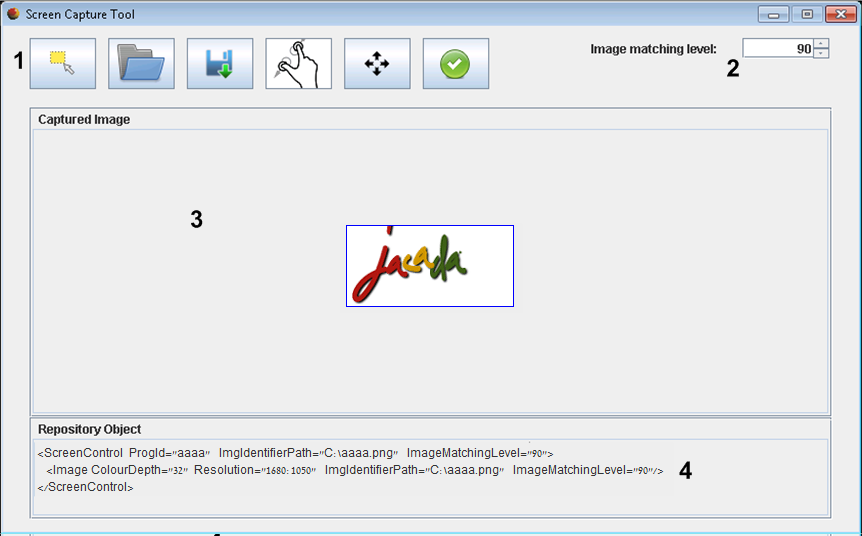

1

Toolbar

Enables actions related to screen control capture and image maintenance. For more information, refer to Screen Capture Toolbar.

2

Image Matching Level value

This value determines the accuracy of the image processing used (in runtime) to find the relevant image. The range is 70<=X<=98.

The default (and recommended) value is 90.

3

Captured Image frame

This area displays the images that are captured.

4

Repository Object frame

This area automatically displays the attributes of the captured screen control captured (The Screen Control Repository Object). After reviewing this screen control definition and making necessary modifications, it should be copied to the Repository.
