Viewing the Integration Points Grid
Contents

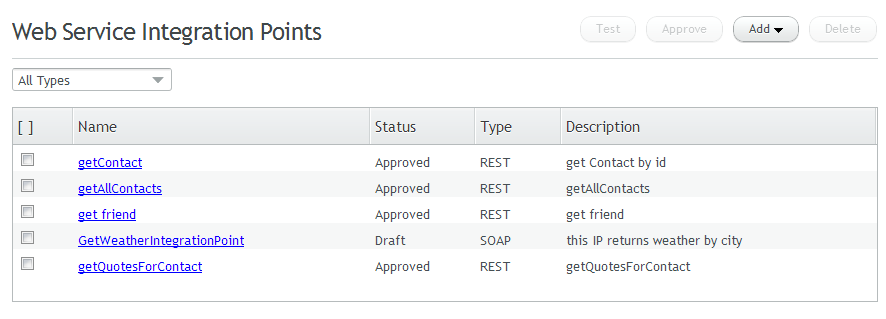

The Integration Points grid lists all configured integration points, and provides basic information about each one. The dropdown list at the upper left corner of the page allows you to filter the list according to type of integration point (REST, SOAP, or All Types).
The leftmost column of the grid enables you to select one or more integration points on which to perform administrative actions. Clicking the column header selects or clears all the integration points on the list.
The following data is provided about each integration point:
Column |
Description/Notes |
|---|---|
Name |
Name of the integration point. Clicking the Name link displays the Integration Point Details page. |
Status |
Draft or Approved. Approved integration points are available for use in the Interaction Designer. |
Type |
SOAP or REST. |
Description |
Relevant notes, generally describing the purpose of the integration point. |

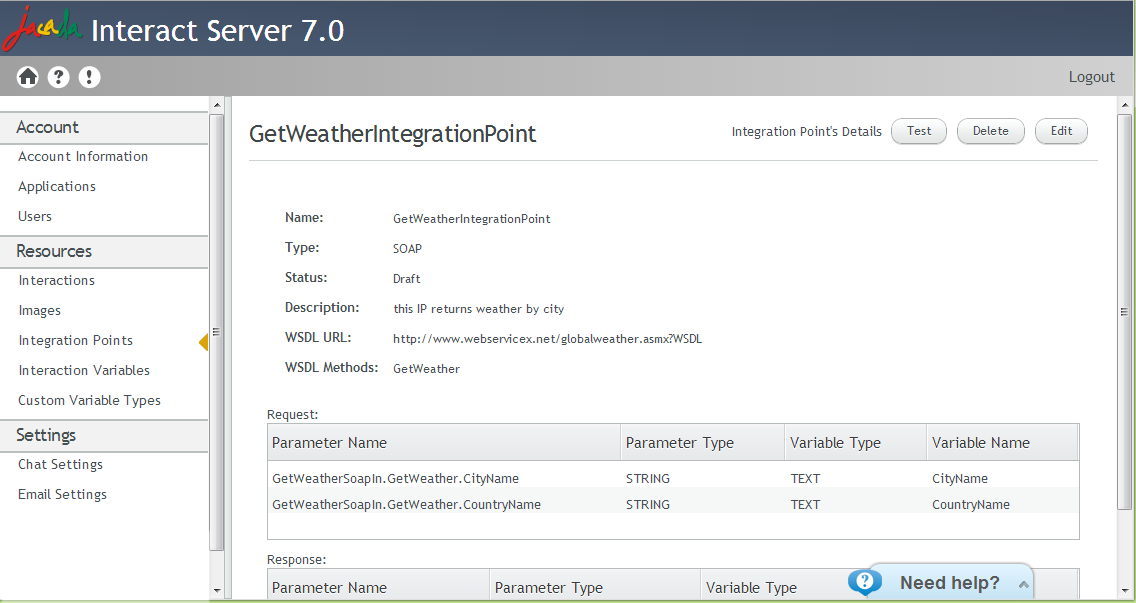

Clicking a Name link in the Integration Points grid displays the Integration Point Details page. This page provides more detailed information about the selected integration point. The following administrative actions can be performed from this page: •Testing the integration point •Editing the integration point •Deleting the integration point In addition to the data provided in the Integration Points grid, the Integration Point Details page shows request and response parameters. The Details pages of SOAP integration points list the WSDL and selected methods, while pages for SOAP integration points list the endpoint URL and the request header/body.
|
