In this phase, a Collection Display element is used to display the selected customers in a table.

To display the object collection:

1.From the toolbar, click , and then click on the Interaction Map.

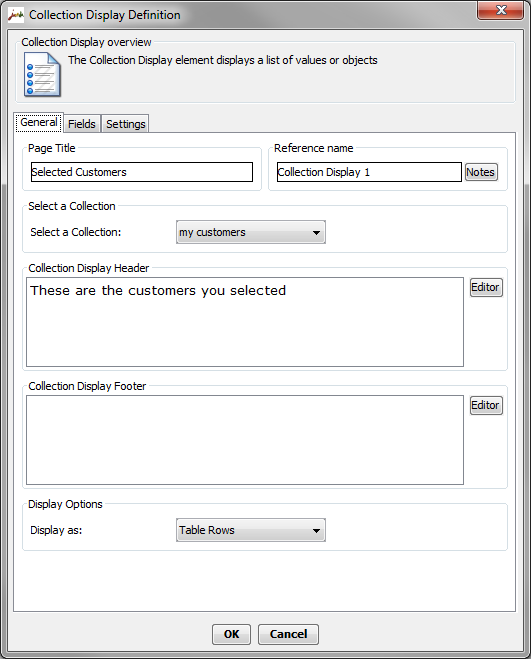

The Collection Display Definition dialog opens, with the General tab displayed by default.

2.Add a reference name and page title in the appropriate fields.

3.From the Select a Collection dropdown list, select the collection you created in the previous phase (my customers).

4.If desired, enter a header and/or footer to be displayed before/after the collection of values.

5.From the Fields tab, review the table display. You can remove fields from the table, change the order of the fields, and change the headers for the table columns.

6.Click OK.

The Collection Display element is added to the Interaction.

7.Draw a Connector from the Choice Lookup item to the Collection Display element.

8.To review your work, run the Interaction.
