Choice items provide a set of options which with users can answer a given Question. Each Choice element represents one option. It is recommended to use Choice items in conjunction with other Choice items and a Question element.

Sample Use Case

The Question What is your favorite color? can be followed by 4 Choice items: Red, Green, Blue, and Other. When the Other Choice is selected, users could be prompted to enter their favorite color.

Defining Choices

Creating and modifying a Choice item involves specifying parameters specifying settings in the General tab of the Choice Definition dialog. When designing a Choice using the Choice Definition dialog, users must select from predefined options. (They are not able to provide their own input for a response.) Images may be used as part or all of the Choice label.

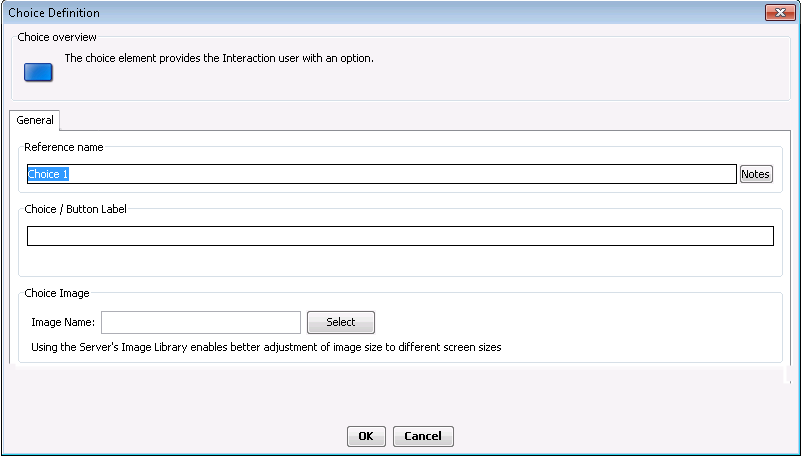

Choice Definition Dialog

Setting

Description/Notes

Reference name

The name of the Choice item. The name should be unique, so it can be used for referencing. The reference name appears only in Design view. It is not visible to users..

Choice/Button Label

The text that users see on the screen.

Choice Image

Clicking Select enables you to choose and insert an image from the server’s Image Library. For details, refer to Inserting Images.
